Introduction

The Server-to-Server (S2S) UPI Intent integration eliminates redirection hops by initiating transactions from your backend. Deliver a seamless checkout experience while maintaining control and confidence for your customers.

No Redirect Hops

Initiate transactions directly from your server to improve user experience

Flexible Intent Invocation

Call the Initiate Payment API when the user selects an app (Mobile) or scans a QR code (Desktop)

Robust Server Callbacks

Receive asynchronous status updates via server-to-server callbacks

Intent Invocation

Intent invocation is simply the act of packaging your UPI payment details (amount, payee VPA, reference, etc.) into a deep-link URI and then launching the user’s UPI app directly from your front end. With a specific intent, you target a known app (e.g. Google Pay), while a generic intent lets Android show an app picker (on iOS it falls back to the default handler), all without bouncing users through extra web redirects.

Prerequisites

Before you begin, ensure you have:

Credentials: Your Client ID and Client Secret
Domain Whitelist: Whitelisted your website domain for integration
Webhook URL: A secure endpoint to receive payment status updates
Callback URL: A publicly accessible URL configured in your EximPe dashboard for server-to-server callbacks.
cURL or HTTP Client: Capability to make HTTPS POST and GET requests from your server.
UPI Knowledge: Familiarity with UPI intent URL parameters and encoding.

The following steps allow you to integrate the server-to-server UPI intent:

User selects UPI App (Mobile) or QR Code (Desktop) on your frontend.
Frontend calls your Backend to initiate the payment.
Backend calls EximPe Initiate Payment API to get the intent_uri.
Backend returns intent_uri to the Frontend.
Frontend invokes the UPI Intent on the customer’s device.
Check UPI transaction status via API or Webhook.

Step 1: Payment Page UI

Design your payment page to allow users to select their preferred UPI method.

Desktop (PC)

On desktop browsers, prepare a container to display a QR Code. When the user proceeds, you will generate this QR code from the intent URI.

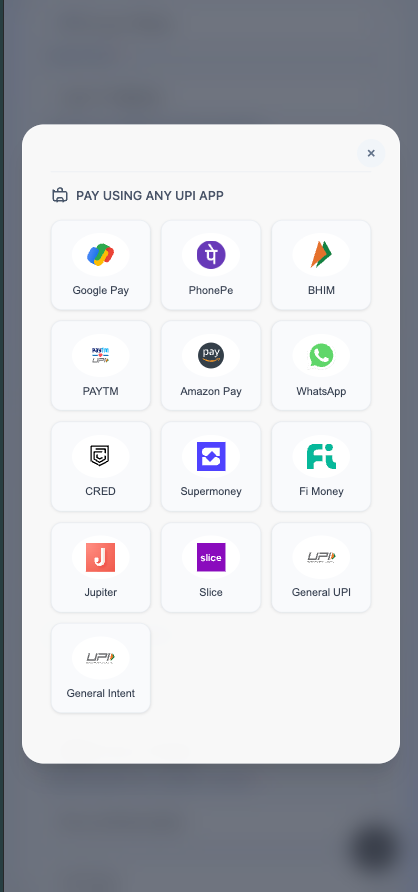

Mobile (Android & iOS)

For mobile devices, design a list of popular UPI apps (like Google Pay, PhonePe, Paytm) for the buyer to select from. This provides the best user experience.

Step 2: Initiate Payment

When the user clicks on a specific UPI app icon (e.g., Google Pay) on mobile or selects “Show QR” on desktop, your backend should call this API to generate the intent_uri.

Sample UPI Intent Request Body

{
  "amount": "1000.00",
  "collection_mode": "s2s",
  "upi_flow_type": "intent",
  "currency": "INR",
  "reference_id": "S2SI_U8MEIT",
  "mop_type": "upi",
  "buyer": {
    "name": "John Doe",
    "email": "[email protected]",
    "phone": "+919876543210",
    "address": {
      "line_1": "123 Main Street",
      "line_2": "Apt 4B",
      "city": "City",
      "state": "State",
      "postal_code": "123456"
    },
    "ip_address": "192.168.1.100",
    "user_agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36"
  },
  "product": {
    "name": "Sample Product",
    "description": "This is a sample product description",
    "hs_code": "98051000",
    "hs_code_description": "Portable automatic data processing machines",
    "type_of_goods": "physical_goods"
  },
  "invoice": {
    "number": "INV_V9TZZ3",
    "date": "2025-07-08"
  }
}

For the S2S UPI Intent request, you must include these additional parameters beyond the standard checkout fields:

collection_mode: must be set to "s2s"
upi_flow_type: must be set to "intent"
buyer.ip_address: the customer’s device IP address
buyer.user_agent: the customer’s browser or app user-agent string

S2S UPI Intent Response

{
  "success": true,
  "message": "S2S UPI Request created successfully",
  "data": {
    "intent_uri": "pa=kk.payutest@hdfcbank&pn=&tr=403993715534292371&tid=PPPL403993715534292371080725205418&am=1000.00&cu=INR&tn=UPIIntent",
    "order_id": "OD2000992103"
  }
}

For S2S UPI Intent mode, the response includes:

order_id: Unique order identifier
intent_uri: UPI intent link that can be used to open UPI apps directly

Explanation of URL Arguments

Argument	Example Value	Required	Description
`pa`	`merchant@bank`	Yes	Payee VPA (Virtual Payment Address) — the merchant’s UPI ID that will receive the payment
`pn`	`Merchant Name`	Yes	Payee Name — the display name of the merchant
`am`	`100.00`	No	Amount — the payment amount (decimal, up to two places)
`cu`	`INR`	Yes	Currency — must be `INR` for Indian rupees
`tr`	`TXN12345`	Yes	Transaction Reference ID — unique identifier for this transaction (for reconciliation)
`tid`	`TXNID98765`	No	Transaction ID — a unique transaction ID (sometimes required by specific apps, e.g., Google Pay)
`tn`	`Order Payment`	No	Transaction Note — a short note or description for the payment

Step 3: Invoke UPI Intent

The method for invoking a UPI payment depends on the customer’s device and operating system.

Desktop (PC)

On desktop browsers, use the intent_uri to generate a QR Code. The user can then scan this code with their mobile UPI app to complete the payment. Implementation:

Prefix the intent_uri with upi://pay?
Use a QR code generation library or API to convert the full URI into a QR code image.
Display the QR code prominently with instructions like “Scan to Pay”.

PC Specific App Format:

upi://pay?<intent_uri>

Examples:

upi://pay?pa=merchant@bank&pn=Merchant&am=1.00&cu=INR&tr=TXN123

Mobile (Android & iOS)

For mobile devices, use the intent_uri to directly launch the customer’s UPI application. This provides a seamless experience without manual data entry.

1. Specific App Invocation (Android & iOS)

To target a specific app, use the following schemes:

UPI App	Android Package Name (for Intent URL)	iOS URL Scheme Prefix
Google Pay	`com.google.android.apps.nbu.paisa.user`	`gpay://upi/pay?`
PhonePe	`com.phonepe.app`	`phonepe://upi/pay?`
BHIM	`in.org.npci.upiapp`	`bhim://upi/pay?`
Paytm	`net.one97.paytm`	`paytmmp://upi/pay?`
Amazon Pay	`in.amazon.mShop.android.shopping`	`amazonpay://upi/pay?`
CRED	`com.dreamplug.androidapp`	`credpay://upi/pay?`
Supermoney	`money.super.payments`	`super://pay?`
Fi Money	`com.fi.money`	`fi://upi/pay?`
Jupiter	`money.jupiter`	`jupiter://upi/pay?`
Slice	`indwin.c3.shareapp`	`slice://upi/pay?`

Android Specific App Format:

intent://pay?<intent_uri>#Intent;scheme=upi;package=<package_name>;end;

Examples:

intent://pay?pa=merchant@bank&pn=Merchant&am=1.00&cu=INR&tr=TXN123#Intent;scheme=upi;package=com.google.android.apps.nbu.paisa.user;end;

iOS Specific App Format:

<scheme_prefix><intent_uri>

Examples:

gpay://upi/pay?pa=merchant@bank&pn=Merchant&am=1.00&cu=INR&tr=TXN123

2. Generic Intent Invocation

If you want to allow the user to choose from any available UPI app or use their default handler, use the following scheme:

Type	Scheme Prefix	Description
General UPI	`upi://pay?`	Launches the system’s default UPI handler

Example:

upi://pay?pa=merchant@bank&pn=Merchant&am=1.00&cu=INR&tr=TXN123

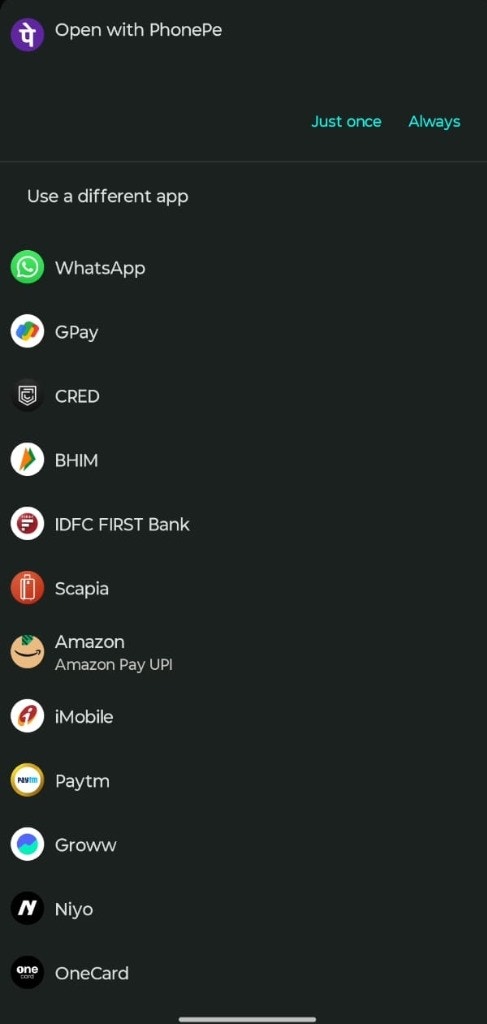

On Android: Invoking upi://pay? will open the system’s app tray (the “Complete action using” dialog), allowing the buyer to select from all installed UPI apps.

On iOS: Invoking upi://pay? will directly open the default UPI app configured on the device.

Pro Tip: For the best user experience, detect the user’s device type. Show a QR code on Desktop and a list of UPI apps (or a “Pay via UPI” button) on Mobile.

Step 3: Check UPI Transaction Status

Invoke the Order Status API to retrieve the status of the UPI transaction:

curl -X GET https://api-pacb.eximpe.com/pg/orders/{order_id}/status/ \
  -H "X-Client-ID: YOUR_CLIENT_ID" \
  -H "X-Client-Secret: YOUR_CLIENT_SECRET" \
  -H "X-API-Version: 1.0.0"

For detailed parameters and response formats, see the Get Order API

Step 4: EximPe sends webhook response

EximPe can also send a webhook response whenever the transaction status gets updated. For more information, see the Payment Successful response
